Digital PID Temperature Controller with SSR Output and K Thermocouple Probe

Digital PID Temperature Controller with SSR Output and K Thermocouple Probe

$179.94
$179.94
- 0% Sold out

Fast Delivery

Free returns
  • Visa
  • Mastercard
  • PayPal
  • Apple Pay
  • Shop Pay
  • Google Pay
Order within
→
Ships within

Returns

We accept returns within 30 days of delivery. Items must be unworn, unwashed, and returned with original tags attached.

Care Instructions

To preserve the beauty of your dress, we recommend gentle hand washing or dry cleaning. Do not bleach. Hang or lay flat to dry. Steam or iron on low heat if needed.

Shipping

Orders are processed within 1–3 business days.

  • Standard Shipping: 5–9 business days — $3.95
  • Express Shipping: 4–7 business days — $9.95

Delivery times are estimates and may vary depending on your location. Tracking information will be provided once your order has been shipped.

Get precise and stable temperature regulation with this digital PID temperature controller kit. Designed for heating, oven builds, kilns, distillation setups, and DIY automation, this controller uses advanced PID self tuning for fast response, minimal overshoot, and reliable accuracy. The package includes a solid state relay, heat sink, and K type probe for easy installation.

Key Benefits

  • Fast reacting PID control for accurate temperature regulation

  • Supports K type thermocouples up to 400 C

  • Includes SSR and heat sink for high load switching

  • Easy button setup with clear PV and SV display

  • Compact size ideal for control boxes and custom builds

  • Stable industrial grade performance

Specifications

  • Control Type: PID self tuning

  • Measurement Precision: ±0.5 percent FS

  • Cold Junction Compensation: ±2 C

  • Resolution: 14 bit

  • Sampling Period: 0.5 seconds

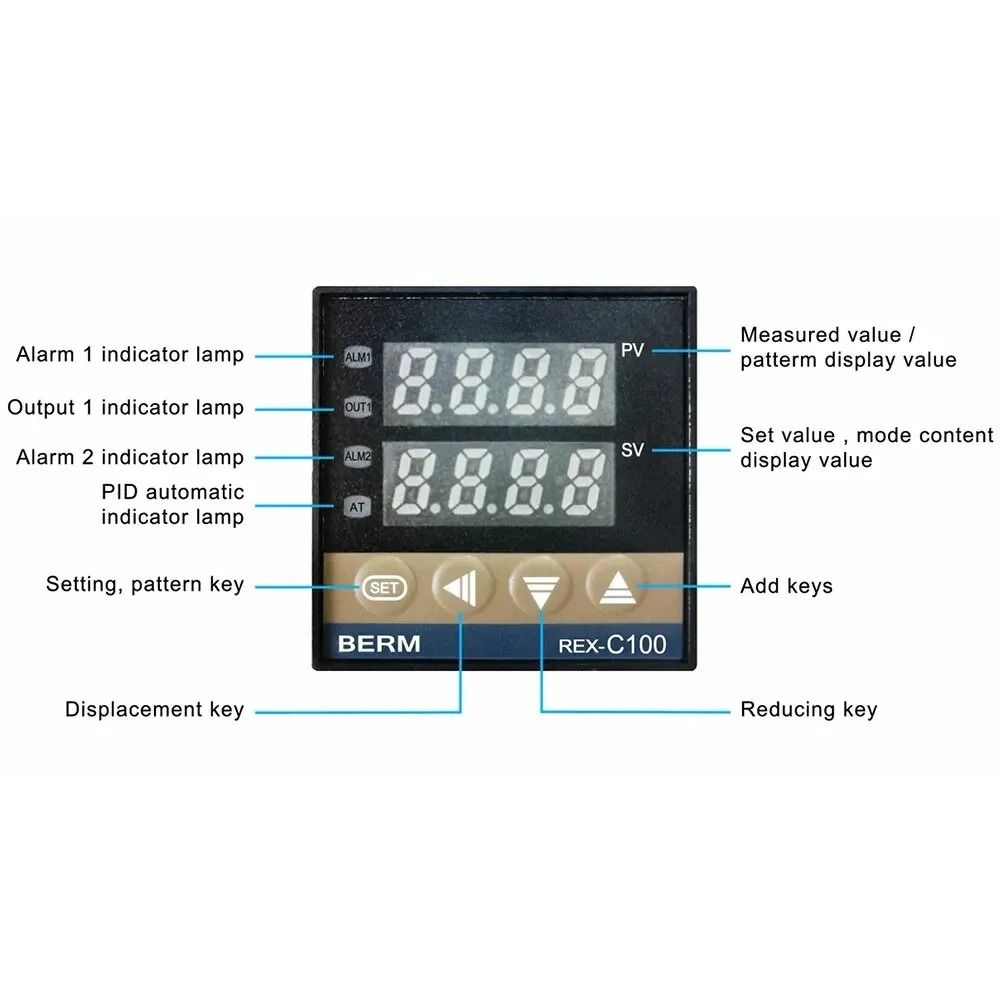

  • Display: PV and SV dual display

  • Power Supply: AC 100 to 240V 50Hz

  • Insulation Resistance: >500 MΩ at 500V DC

  • Dielectric Strength: 1500V AC for 1 minute

  • Power Consumption: <10VA

  • Operating Conditions: 0 to 50 C, 30 to 85 percent RH (non corrosive)

  • Thermocouple Type: K type probe (0 to 400 C)

Controller Dimensions

  • Front Panel: 48 mm x 48 mm

  • Body Size: 44 mm x 44 mm x 100 mm

  • Mounting Cutout: approx. 44 mm x 44 mm

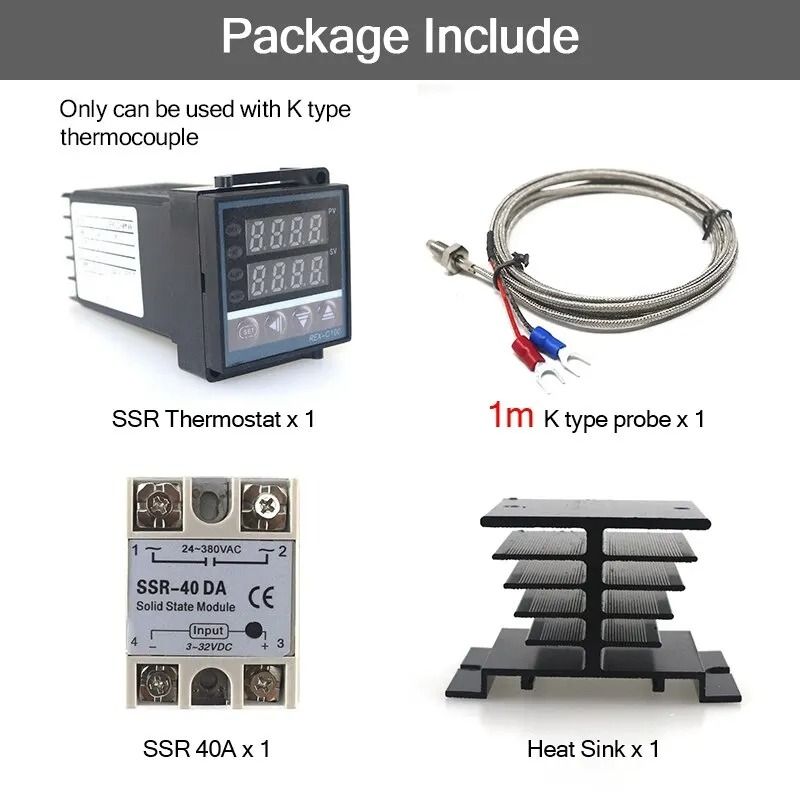

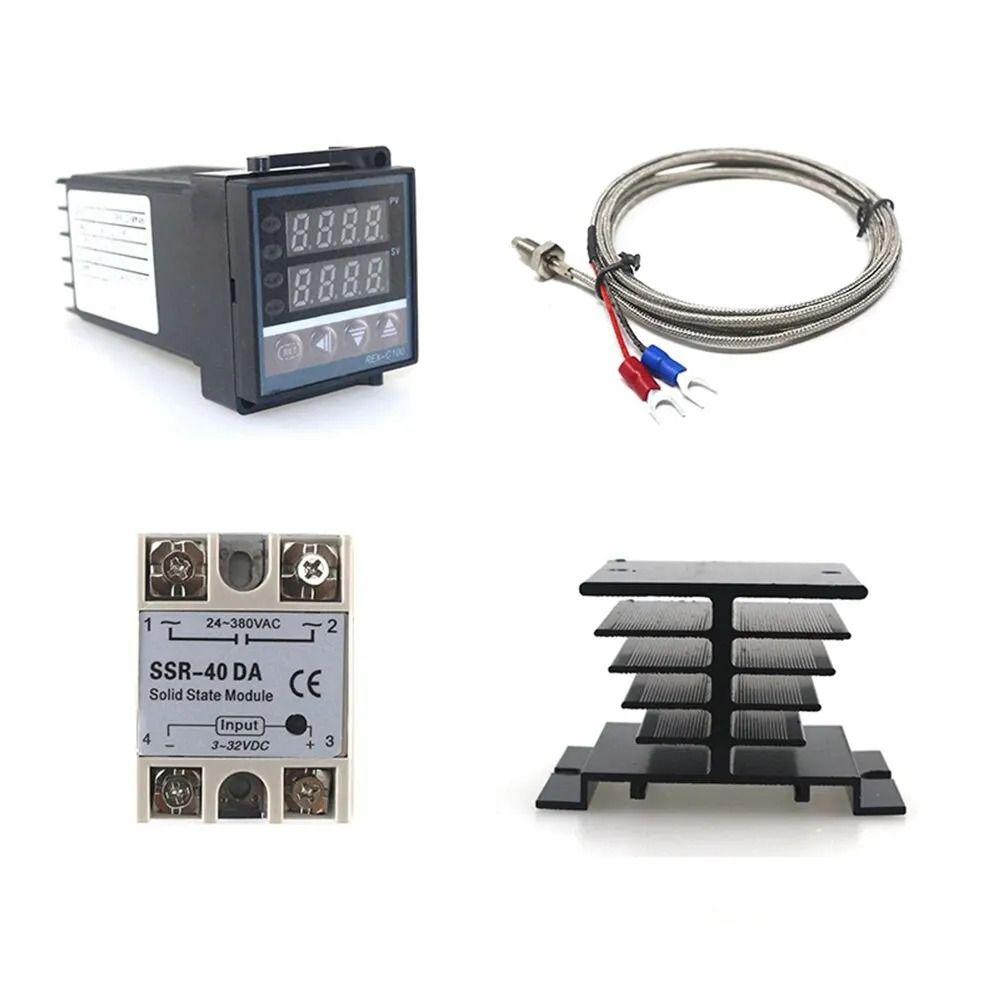

Package Includes

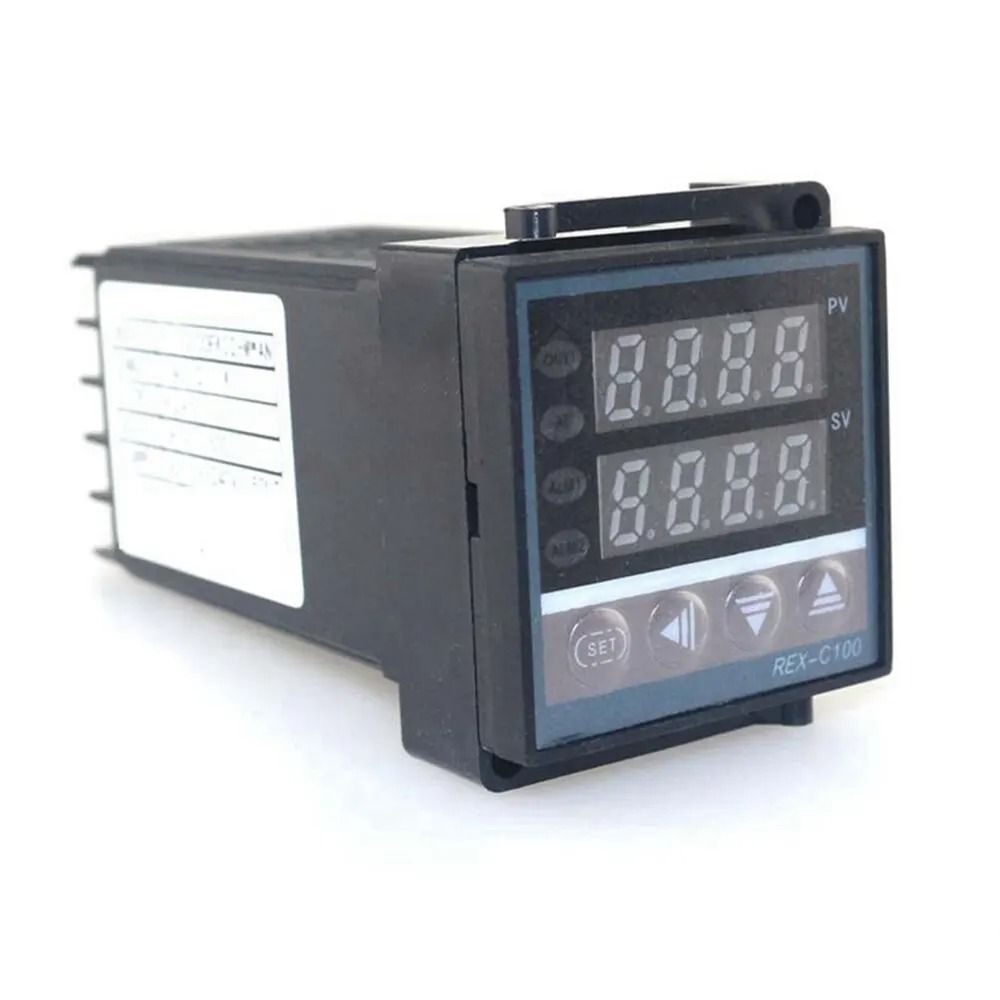

  • Digital PID Temperature Controller

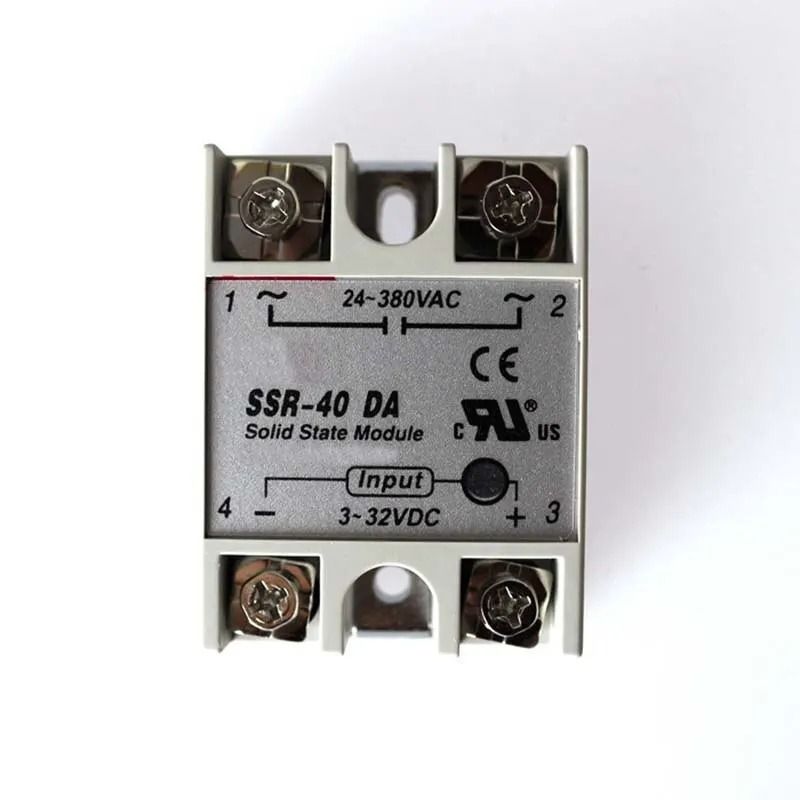

  • 40A Solid State Relay

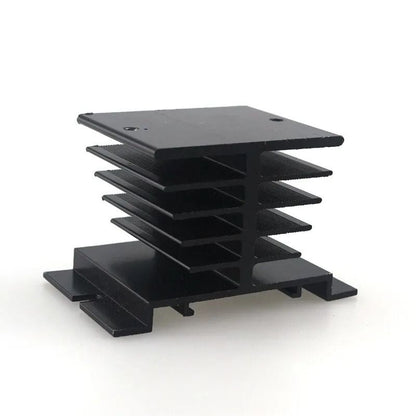

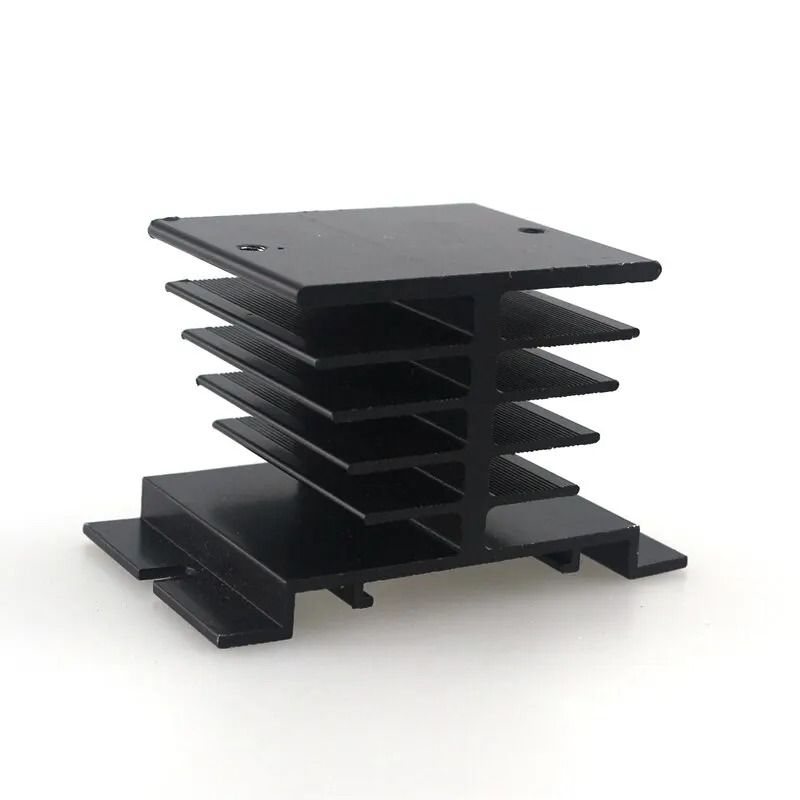

  • Heat Sink

  • 1 m K Type Thermocouple Probe
